Single-acting Low Height Hydraulic Cylinders 03

Single-acting Low Height Hydraulic Cylinders 01

Single-acting Low Height Hydraulic Cylinders 04

Single-acting Low Height Hydraulic Cylinders 05

SSB Series Single-acting Low Height Hydraulic Cylinders Jack

5out of5based on1 reviews | Write a review

Capacity: 10-150ton

Stroke: 38-80mm

Max. pressure: 700bar

Single-acting, spring return.

Low profile design, fit in narrow application area.

Special painted surface to increase corrosion resistance.

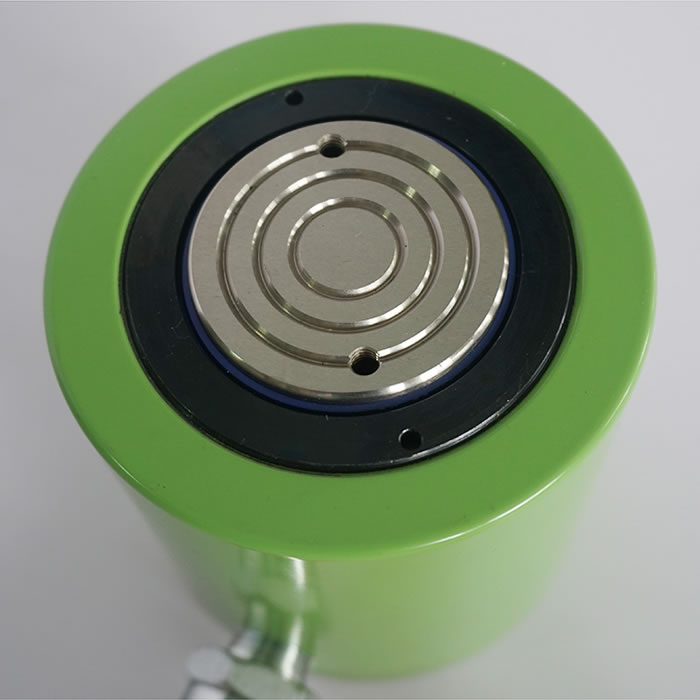

Two plunger threads on grooved plunder end for particular needs.

All model include quick couplings (NPT3/8"-18) and dust-proof cap.

Easy carrying with handles on some

Contact Now

Capacity: 10-150ton

Stroke: 38-80mm

Max. pressure: 700bar

Single-acting, spring return.

Low profile design, fit in narrow application area.

Special painted surface to increase corrosion resistance.

Two plunger threads on grooved plunder end for particular needs.

All model include quick couplings (NPT3/8"-18) and dust-proof cap.

Easy carrying with handles on some models (Capacity over 50tons).

No saddle required with grooved plunder end.

Customizable with special requirement.

SAIVS is a professional manufacturer in hydraulic tools and products,we have been in the industry for more than 15 years.We successfully transformed from OEM manufacturer to create our own brand SAIVS, and our factory has been approved by CE,ISO9001:2008 consecutively. Our products have been widely used in petrochemical, Building, shipbuilding, steel plant and heavy constructions areas etc.

SSB Hydraulic-cylinder-12.jpg

SSB Series Single-Acting Low Profile Cylinders
	Cylinder Capacity	Stroke	Model Number	Cylinder Effective Area	Oil Capacity	Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia.	Plunger Dia.	Base to Advance Port	Saddle Protrusion from Plgr.	Weight	Mounting Hole Dimensions
	Cylinder Capacity	Stroke		Cylinder Effective Area	Oil Capacity	Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia.	Plunger Dia.	Base to Advance Port	Saddle Protrusion from Plgr.	Weight	Model Number	Bolt Circle	Thread	Thread Depth
						A	B	C	D	E	F	J			O	P	W
	ton(KN)	(mm)		(cm2)	(cm3)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)		(mm)		(mm)
	10(101)	38	SSB10-38	15.9	60	88	126	78	45	35	19	2	4	SSB10-38	26	M4	8
	20(201)	45	SSB20-45	31.1	140	97	142	96	63	50	19	2	6.9	SSB20-45	39	M5	8
	30(295)	64	SSB30-64	45.3	290	117	181	109	76	60	19	2	9.8	SSB30-64	39	M5	8
	50(549)	60	SSB50-60	78.5	471	120	180	133	100	80	21	2	13.3	SSB50-60	39	M5	8
	75(718)	50	SSB75-50	116.8	584	116	166	157	122	100	21	2	19	SSB75-50	55	M8	10
	100(887)	57	SSB100-57	153.9	877	141	198	178	140	112	31	2	24.5	SSB100-57	55	M8	10
	150(1386)	51	SSB150-51	232.2	1184	141	192	215	170	145	28	2	42	SSB150-51	55	M8	10
	150(1386)	80	SSB150-80	232.2	1860	170	250	215	170	145	28	2	50	SSB150-80	55	M8	10

SSB Hydraulic-cylinder-5.jpg

SSB Hydraulic-cylinder-11.jpg

SSB Hydraulic-cylinder-1.jpg

PROVIDING EXCELLENT SOLUTIONS BY SAIVS™

Speak to one of our experts today to learn more about our SSB Series Single-acting Low Height Hydraulic Cylinders Jack products solutions.

Request a Quote

Tags： 10 ton hydraulic jack 20 ton hydraulic jack 30 ton hydraulic jack 50 ton hydraulic jack 75 ton hydraulic jack 100 ton hydraulic jack

Q: Are you trading company or manufacturer?
A: We are factory with more than 20 years experience.
Q: How long for delivery?
A: Generally it is 15-30days as we are customized service we confirm with customer when place order.
Q: What is the MOQ?
A: It depends on what you are buying. Normally, our minimum order is one 20' full container and LCL container (less than a container load) can be acceptable.
Q: Can you customize my products?
A: Yes, we can customized products with your design drawings like DWG, DXF, DXW, IGES, STEP, PDF etc.
Q: What is your terms of payment?
A: 30% T/T in advance, balance before shipment, or as per discussion.
Q: What about your quality control?
A: 1.Checking the raw material after they reach our factory(IQC) 2. Checking the details before the production line operated.3.Have full inspection and routing inspection during mass production(IPQC) 3.Checking the goods after they are finished(FQC). 4.Checking the goods after they are finished(QC). 5.100% inspection and delivery before shipment
