SG50S,2.5T 200mm Stroke,electro hydraulic linear actuator

5out of5 based on12 reviews | Write a review

12V Hydraulic Linear Actuator, 2.5T, 200mm Stroke

Hydraulic actuator features high integration with hydraulic station,

oil cylinder, self-locking mechanism, overflow valve,

reversing valve in one, can be used directly once powered on.

Stable performance hydraulic push rod with a wide selection of 12V/24V/48VDC,

220VAC input voltages, jacking force 2.5T, 200mm stroke length,

noise<80dB. Installation size and cylinder stroke can be

customized according to special requirements.

Description:


ModelSG50S-300WSG50S-800W
Input Voltage*
220V AC/ 12V/24v/ 48V DC
24V/48V DC
Power
300W800W
Stroke Length *
50-450mm50-450mm
Jacking Force
2.5T2.5T
Retracting Force
1.5T1.5T
Speed5-6mm/s10-11mm/s
Operating Temprature
-20буC~+60буC
-20буC~+60буC
Duty Cycle
Long-term continuous use 4 mins/time
Long-term continuous use 6 mins/time
Protection Grade
IPx6
Certification
CE
Warranty1 year
Weight6-12kg



Hydraulic Linear Actuator Product information



Oil filler plug: The oil is added or replaced from the plug.

Jacking force adjustment plug: When users unscrew the plug, tighten the nut, the jacking force will increase. When loosening the nut, the force will decrease.

Retracting force adjustment plug: When users unscrew the plug, tighten the nut, the retracting force increases. When loosening the nut, the force decreases.

Safety valve: When the piston rod cannot be withdrawn due to unexpected reasons, loosen the safety valve to enable the ejector rod to recover automatically under the action of load force. Be sure to screw it tightly before the next time users use it.


Application:

Food and Beverage Industry: Packaging machinery for precise product placement.

Hydraulic Presses: Precision bending and forming operations.

Construction Equipment: Crane booms for lifting and positioning heavy loads.Scissor lifts for elevated work platforms.

Elevators and Escalators: Elevator cabins and escalator steps movement.

Material Handling: Conveyor systems for controlled product transport.Palletizers and depalletizers for stacking goods.

Printing Industry: Paper feed systems in printing presses.

Image Gallery:

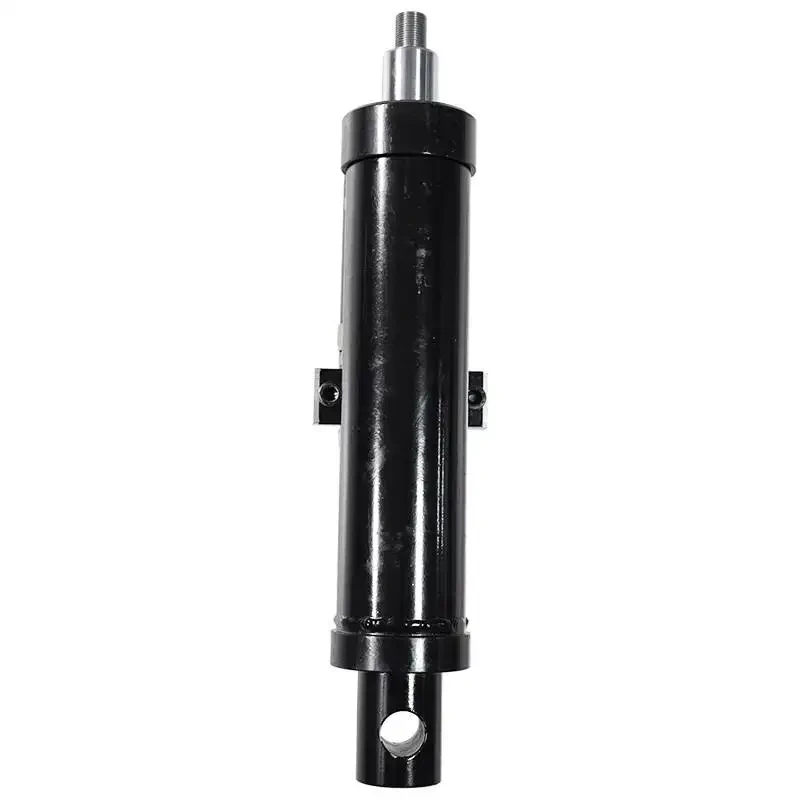

SG50S,2.5T 200mm Stroke,electro hydraulic linear actuator-1-Image-SAIVS
SG50S,2.5T 200mm Stroke,electro hydraulic linear actuator-2-Image-SAIVS
SG50S,2.5T 200mm Stroke,electro hydraulic linear actuator-3-Image-SAIVS
SG50S,2.5T 200mm Stroke,electro hydraulic linear actuator-4-Image-SAIVS
