SG40-500,Low Noise 1.8T Electric Hydraulic Linear Actuator

5out of5 based on19 reviews | Write a review

The Compact Miniature Hydraulic Push Rod: Integrated System for Versatile Applications

The compact miniature hydraulic push rod is a comprehensive system that combines a hydraulic station,

cylinder, self-locking mechanism, overflow valve, and reversing valve all in one.

With a maximum force capacity of 1.8T, it delivers reliable power for a wide range of applications.

The travel speeds can be adjusted from 7-8 mm per second to 15-18 mm per second, providing flexibility in operation.

Customizable stroke lengths ranging from 50mm to 1000mm make it suitable for various requirements.

It supports input voltages of 12V - 48VDC and 220VAC, ensuring compat

Description:

ModelSG40-500-300WSG40-500-800W
Input Voltage*
220V AC/ 12V/24v/ 48V DC
24V/48V DC
Power
300W800W
Stroke Length *
500mm500mm
Jacking Force
1.8T1.8T
Retracting Force
1T1T
Speed7-8mm/s15-18mm/s
Operating Temprature
-20буC~+60буC
-20буC~+60буC
Duty Cycle
Long-term continuous use 4 mins/time
Long-term continuous use 6 mins/time
Protection Grade
IPx6
Certification
CE
Warranty1 year
Weight12kg


Hydraulic Linear Actuator Details


Oil filler plug: The oil is added or replaced from the plug.

Jacking force adjustment plug: When users unscrew the plug, tighten the nut, the jacking force will increase.

When loosening the nut, the force will decrease.

Retracting force adjustment plug: When users unscrew the plug, tighten the nut,

the retracting force increases. When loosening the nut, the force decreases.

Safety valve: When the piston rod cannot be withdrawn due to unexpected reasons,

loosen the safety valve to enable the ejector rod to recover automatically under the action of load force.

Be sure to screw it tightly before the next time users use it.


Application:

Surveillance Systems: Pan-tilt-zoom camera positioning.

Automotive Sector: Convertible roof mechanisms.Tailgate opening and closing systems.

Aerospace Industry: Flap and slat control systems on aircraft.Landing gear extension and retraction mechanisms.

Pharmaceutical Manufacturing: Pill dispensing and sorting machines.

Agricultural Irrigation: Adjustable irrigation gates and valves.

Hydraulic Presses: Precision bending and forming operations.

Image Gallery:

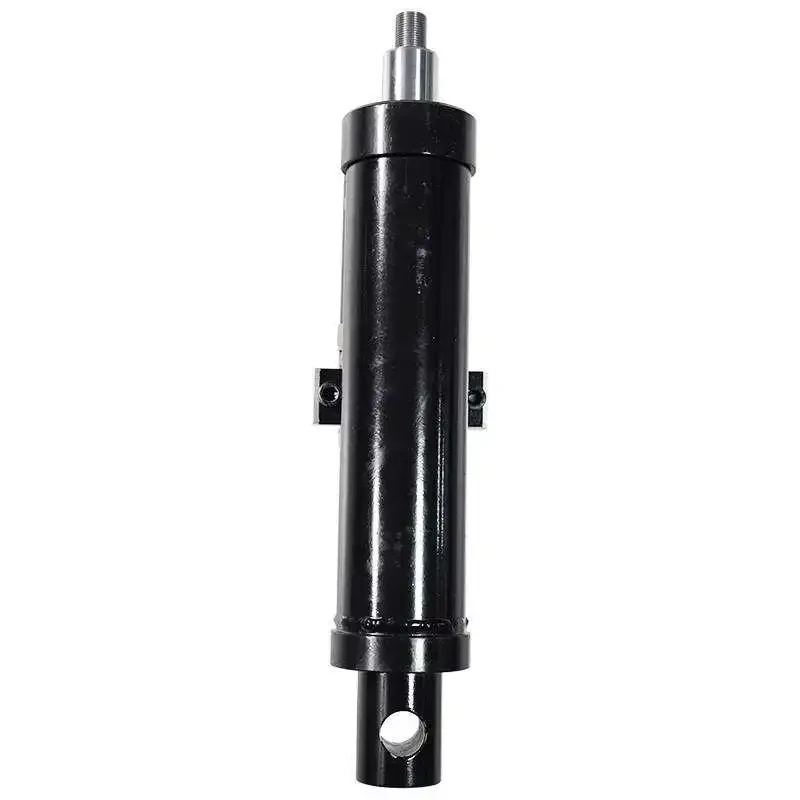

SG40-500,Low Noise 1.8T Electric Hydraulic Linear Actuator-1-Image-SAIVS
SG40-500,Low Noise 1.8T Electric Hydraulic Linear Actuator-2-Image-SAIVS
SG40-500,Low Noise 1.8T Electric Hydraulic Linear Actuator-3-Image-SAIVS
SG40-500,Low Noise 1.8T Electric Hydraulic Linear Actuator-4-Image-SAIVS

Product Video:
