ZD-L15,16.6 GPM,Hydraulic Directional Control Valves-Directional Control Valves-SAIVS

offers original and replacement ZD-L15,16.6 GPM,Hydraulic Directional Control Valves for our customers. We will save customer costs, increase productivity and profit margins, Welcome to Get Latest Price now!

Function:Directional Control Valve

Spools range:2-4 spool

Nom.Pressure(MPa):16

Max.Pressure(MPa):31.5

Nom.Flow rate(L/min):63/16.64 GPM

Back Pressure(MPa): ≤1

Material:Casting Iron

Warranty:1Year

Drive:Hydraulic

Place of Origin:Ningbo,ZheJiang

Customized support:OEM,ODM

ZD-L15 multi-way directional valve is a kind of medium-high pressure integral multi-way directional

valve independently designed and developed by our company. The valve can be installed with overflow valve,

one-way valve, oil filling valve and so on. The overflow valve can adjust the pressure of the system,

the one-way valve can prevent the oil from flowing backward in the armpit, the reversing valve and

the slide valve function can be A, 0, Y, P, etc., which can be arbitrarily combined.

The reversing handle is available in two forms for easy operation in different directions.

The valve USES parallel oil circuit, design a pressure outlet and other hydraulic components to provide power source.

Through the special design sealing way, causes the valve sealing performance to be remarkable.

The valve is widely used in the Hydraulic System of engineering machinery

such as forklifts, sanitation vehicles and small loaders.

Feature

monoblock directional control valves has many outstanding features including high performance,

high efficiency, small volume, mass flow, and leak proof.

1.Monoblock types with 2 to 4 working sections

2.Flow 63 l/min with pressure 160bar, 200bar, 315bar

3.Spring side control options: T (spring return) and W (detent control)

4.Joining port: L (screw connection)

5.Parallel circuit

6.Spool function: O, P. Y, A

ZD-L15 Directional Control Valves Spool Function

7.Nominal diameter: G1/2; G3/8; M18*1.5; M22*1.5

8.Model examples: ZD-L15E-2OT; ZD-L15F-2OT.QT etc.

9.Lever side control options: manual, pneumatic control, electric and pneumatic control, micro-switch control.

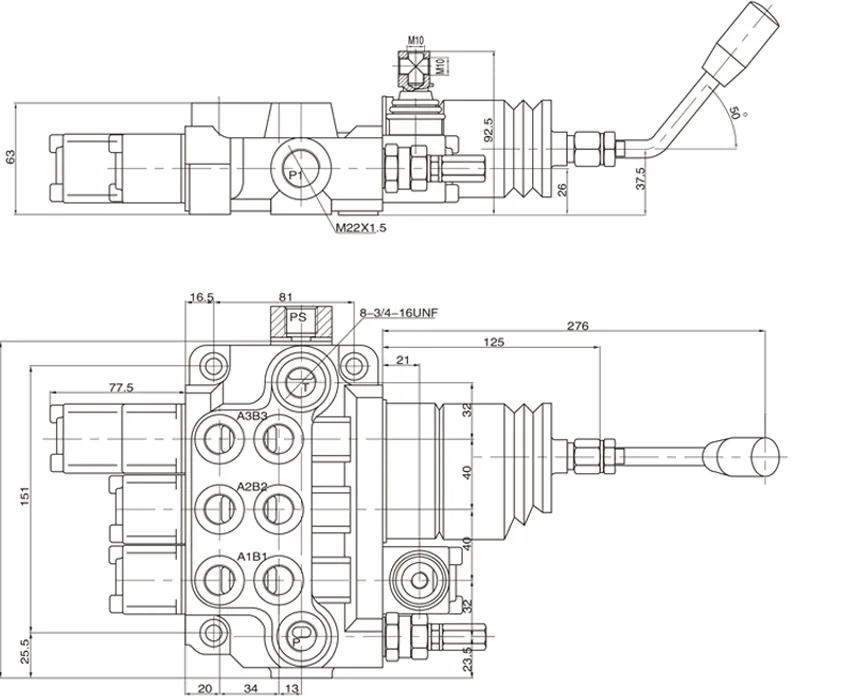

Exterior Size Chart for ZD-L15, Hydraulic Directional Control Valves

Nom.Pressure

（MPa）

Max.Pressure

（MPa）

Nom.Flow rate

（L/min）

Back Pressure

（MPa）

Hydraulic Oil

Tem.rang

（℃）

Visc.rang

（mm2/S）

Filtrating Accuracy

（μm）

31.5

≤1

-20～+80

10～400

≤10

Application

Oil and gas industry: Wellhead control and drilling rigs.

Civil engineering: Hydraulic dams and gates.

Defense applications: Military vehicle control systems.

Agricultural machinery: Tractors, harvesters, and sprayers.

Aerospace: Landing gear and flight control systems.
