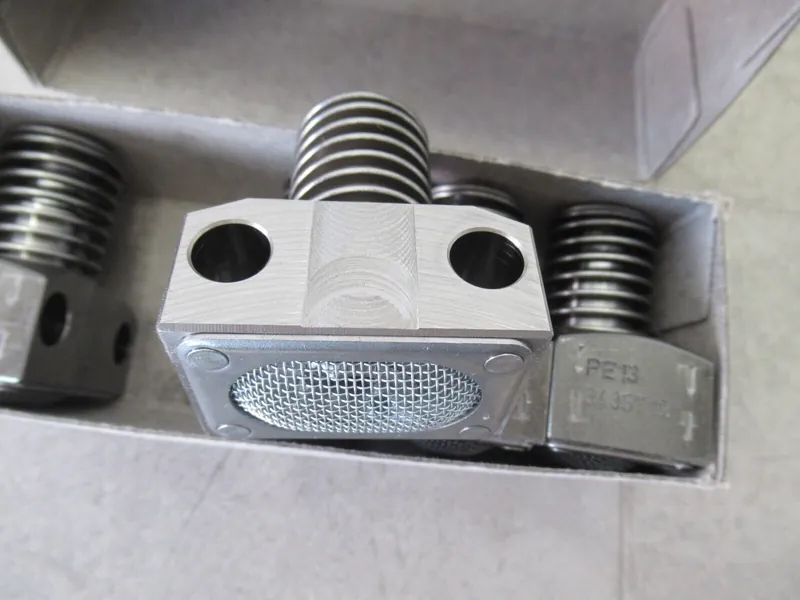

HAWE Radial Piston Pump Element PE Series

5out of5based on2 reviews | Write a review

Model:PE6| PE7| PE8| PE10| PE12| PE13| PE14| PE15| PE16

Operating pressure max: 700 bar/10000 psi

Geometric displacement Vg max: 1.52 cm³/rev

Flow rate Qmax: 2.2 L/min (1450 rpm), 4.2 L/min (2850 rpm)

Dimension(L*W*H):30*30*25

100% Replacement

Brand Name:HAWE

Description: Pump piston plunger

Design: Valve-controlled pump piston plunger

Model:PE6| PE7| PE8| PE10| PE12| PE13| PE14| PE15| PE16

Operating pressure max: 700 bar/10000 psi

Geometric displacement Vg max: 1.52 cm³/rev

Flow rate Qmax: 2.2 L/min (1450 rpm), 4.2 L/min (2850 rpm)

Dimension(L*W*H):30*30*25

100% Replacement

Brand Name:HAWE

Description: Pump piston plunger

Design: Valve-controlled pump piston plunger

Installation position: As desired


Feature:

The suction valve inlet of the pump element must be entirely below

the oil level to prevent any air being drawn in.

The piston and roller bearings must be fully immersed under the oil level

during continuous operation to ensure continuous lubrication.

Material: Steel; hardened, ground functional inner parts

PE Pump Piston Plunger7.webp

Temperatures Ambient: approx. -40 - +80°C, Fluid: -25 - +80°C, Note the viscosity range!

Start temperature: down to -40°C is permissible (observe start viscosities!),

as long as the steady-state temperature is at least 20K higher during subsequent operation.

Biologically degradable pressure fluids: Observe manufacturer's specifications.

By consideration of the compatibility with seal material not over +70°C.

Operating pressure : 700 bar

Efficiency : + 0.95

stroke frequency: min. 200 rpm, max. 2850 rpm

Below min. stroke frequency: volumetric efficiency will drop swiftly.

Above max. stroke frequency: suction problems may occur (with small cylinder diameters)


Weight:

PE 6 - 16: 300 g

Drive type: motor via rotating shaft

Shaft rotation direction: any (direction of delivery remains unchanged)

A roller bearing is mounted eccentrically on the shaft. The outer race of the bearing acts on the back of the pump element.

This generates the lifting movement in conjunction with the return spring.

The flow rate is controlled by automatic suction and pressure control valves in the housing of the pump piston plunger.

HAWE radial piston pump Element PE Series,HAWE Radial piston pump Element PE 8,

Hawe radial piston pump element pe replacement.






TypePistonGeometric displacement Vg (cm3/rev)
Flow rate Q (lpm)Piston force in
       stroke direction
     per 1 bar (N)
Power required
     per 100 bar (kW)
 pmax (bar)

1450 rpm2850 rpm
1450 rpm2850 rpm
PE60.210.30.62.830.055 k0.12 k700
70.290.40.83.900.07 k0.16 k700
80.380.51.05.030.09 k0.18 k700
100.590.81.67.850.15 k0.29 k560
120.841.22.411.30.22 k0.44 k390
131.01.452.813.30.26 k0.52 k330
141.151.73.315.40.31 k0.63 k290
151.321.93.717.70.35 k0.70 k250
161.522.24.220.00.43 k0.84 k220


PE Pump Piston Plunger8.webp

Standard version

TypeBHTØdefg ±0.1ilmnO-ring
PE 6 - 165031.7 ±0.0222.963.8 ±0.05263518.130.212.5M10-8.8
     (48 Nm)
12.37x2.62


Tip:
