With years of expertise, SAIVS stands out among hydraulic cylinder manufacturers in China, offering reliable customized hydraulic cylinder solutions for OEMs and end users. From high-pressure and long-stroke models to compact welded designs, we manufacture all in-house at our advanced factory. Our cylinders are engineered for strength and efficiency, available for international sale at competitive prices. SAIVS supports your business with technical precision and consistent quality.

Overview:

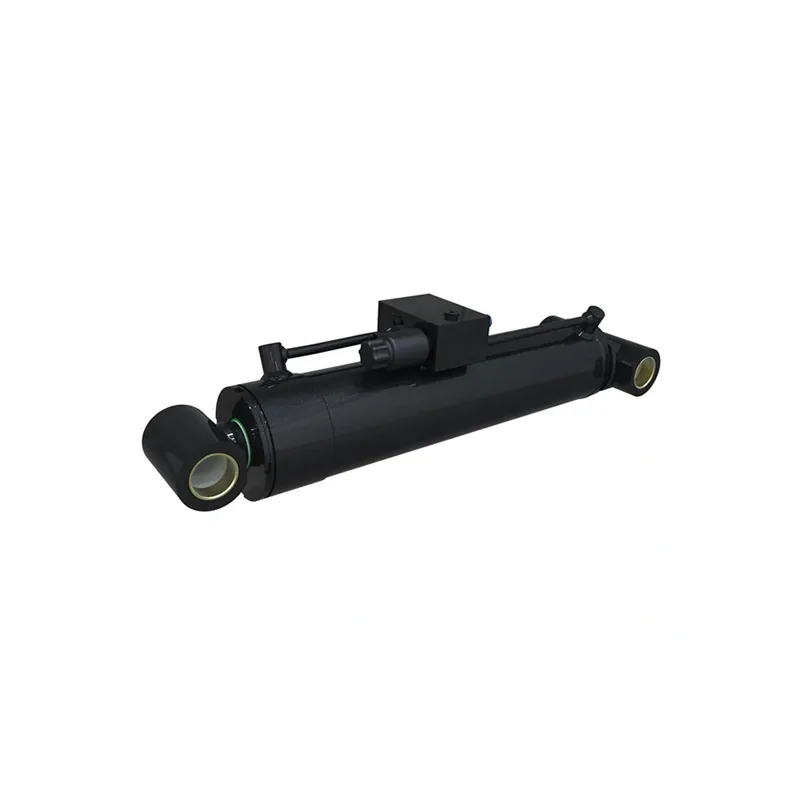

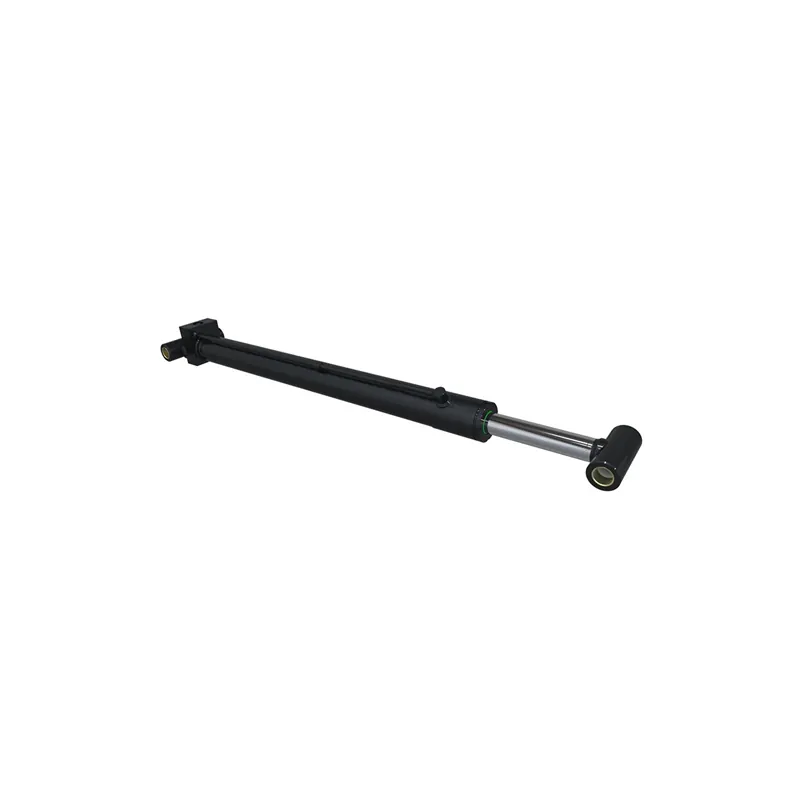

An Aerial Work Platform Outrigger Hydraulic Cylinder is a hydraulic component specifically designed to extend and retract the outriggers of aerial work platforms. Outriggers are crucial for maintaining stability and balance when the platform is elevated, ensuring a secure and safe working environment.

Cylinder Features:

Made of high-quality materials, advanced production technology, with high durability. Using Japan NOK reflected the

seal and the company's unique sealing system design, can get the best sealing oil film and sealing performance. With

advanced production equipment and technology, the piston rod, cylinder, cylinder head, piston, and other

main components have good surface roughness and super performance, etc

Product Design:

At SAIVS, we prioritize safety and reliability above all else in our product design. When it comes to aerial work vehicles,

the stakes are high – personal safety hangs in the balance. That's why we ensure our Hydraulic Cylinders boast ample safety factors,

exceeding industry standards and giving you peace of mind.

We don't stop there. We constantly strive to optimize performance while maintaining robust safety.

Through innovative structural design and integrated valve block technology, we've managed to:

-Reduce cylinder weight, improving overall vehicle efficiency and maneuverability.

-Simplify the Hydraulic System, leading to greater compactness and easier maintenance.

-Equip cylinders for harsh environments, drawing upon our extensive experience in high-altitude operation vehicle design.

Working Principle:

Aerial work platform outrigger hydraulic cylinders work on the principle of hydraulics.

Hydraulics is a system that uses the pressure of a fluid to transmit power.

In the case of outrigger hydraulic cylinders, the fluid is hydraulic oil.

When hydraulic oil is pumped into the cylinder, it pushes the piston inside the cylinder.

The piston is connected to the outrigger, so when the piston moves, the outrigger moves as well.

Specifications:

Custom Hydraulic Cylinder / Pneumatic Cylinder
Stroke	20mm to 16000mm,Customizable
Bore	40mm to 1500mm,Customizable
Shaft	12mm to 1000mm,Customizable
Work pressure	16Mpa to 70Mpa (2250 PSI - 10150 PSI)
Seal	Parker, Merkel, NOK, Hallite,etc.
Paint	Red, Grey, Yellow, Black, etc.
Material	St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc.
Certificate	ISO9001,CE, ABS, Lloyds, SGS, etc.
Package	Bubble-wrap packing, then in wooden case.
Color	choose the color according to customer requirement
Model	Double Acting or Single Acting
Cylinder body material	ST52, CK45, 4140, Duplex 2205, Stainless Steel 304/316, etc.
Structure	Piston Type, Plunger Type, Telescopic Type

Application：

Engineering machinery

Mine

Shipping

Metallurgy

Water conservancy

Offshore

Agriculture

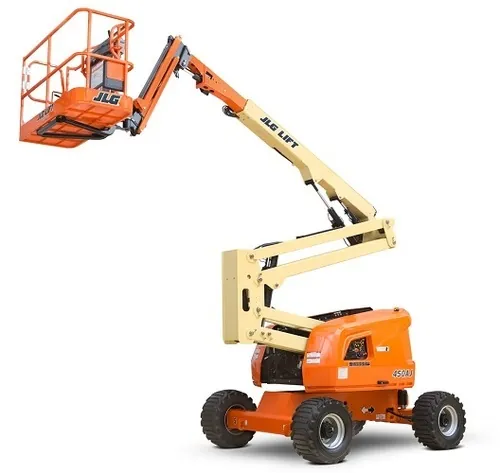

Application of aerial work platform outrigger hydraulic cylinder

Tips

OEM service provided. we produce as per client's drawing or design with technical requirements. Contact Us!

We also produce hydraulic systems, and hydraulic power units.

PROVIDING EXCELLENT SOLUTIONS BY SAIVS™

Speak to one of our experts today to learn more about our Aerial work platform outrigger hydraulic cylinder products solutions.

Request a Quote

Tags： 24 inch hydraulic ram 60 inch hydraulic cylinder Aerial work platform hydraulic cylinder

1. How they affect Hydraulic Cylinder speed

2. Choosing the Right Hydraulic Cylinder

3. Understanding Hydraulic Cylinders and Their Applications

4. What should I do if the oil temperature of the hydraulic cylinder is too high?

5. What are the causes and treatment methods of hydraulic cylinder malfunction

6. Common problems with hydraulic cylinders

7. Quick Couplers for hydraulic cylinders

8. hydraulic cylinders used on bridge construction

9. how to judge the internal leakage of hydraulic cylinder

Q: Are you trading company or manufacturer?
A: We are factory with more than 20 years experience.
Q: How long for delivery?
A: Generally it is 15-30days as we are customized service we confirm with customer when place order.
Q: What is the MOQ?
A: It depends on what you are buying. Normally, our minimum order is one 20' full container and LCL container (less than a container load) can be acceptable.
Q: Can you customize my products?
A: Yes, we can customized products with your design drawings like DWG, DXF, DXW, IGES, STEP, PDF etc.
Q: What is your terms of payment?
A: 30% T/T in advance, balance before shipment, or as per discussion.
Q: What about your quality control?
A: 1.Checking the raw material after they reach our factory(IQC) 2. Checking the details before the production line operated.3.Have full inspection and routing inspection during mass production(IPQC) 3.Checking the goods after they are finished(FQC). 4.Checking the goods after they are finished(QC). 5.100% inspection and delivery before shipment
Q:What if there is a problem with the purchased product?
A:If any quality problem happens please take some photos and videos to show the exact problem, then our engineer will judge and give a solution.
Q:Do you provide OEM service?
A:Yes, we provide OEM service. We will produce products that meet your requirements according to the logo, product parameters and dimensions you provide. Please contact us for more details.
Q:Can I be an agent for SAIVS products?
A:Of course, please contact us for more details.
