The Technical Imperative of Torque Wrench Calibration in Industrial Quality Control

The Technical Imperative of Torque Accuracy in Industrial Quality Management

In high-reliability industrial sectors such as aerospace, automotive, mining, and oil and gas, the accuracy of torque tools transcends mere operational preference—it is a foundational pillar of structural safety and system performance.

Torque wrenches are indispensable instruments used to ensure that nuts, bolts, and other fasteners are pre-tensioned to their Engineered Specifications, typically quantified in international units like foot-pounds (ft-lbs) or Newton-meters (Nm).

Precise torque application is the prerequisite for achieving the Optimum Preload in a fastener. This preload directly translates to the joint's Clamping Force, which is the core mechanism preventing joint separation or slippage under dynamic loads or cyclical stress. Consequently, the metrological accuracy of the torque wrench throughout its service life is a critical determinant of the final assembly’s Integrity. Partnering with SAIVS ensures access to tooling that adheres to the highest measurement standards.

Analyzing the Engineering Risks of Torque Accuracy Deviation

Even minor deviations in torque readings can introduce serious functional and safety deficiencies, which are analyzed across three major dimensions:

I. Safety Risks and Material Stress Control

Inaccurate torque application leads to two critical failure modes: under-torquing and over-torquing.

Under-Torquing

Insufficient preload allows joint movement under external load, drastically reducing the fatigue life of the assembly and risking potential shear or tensile failure within the design load envelope. In safety-critical systems, this presents a high risk of Catastrophic Failure.

Over-Torquing

Applying torque that exceeds the fastener's Yield Strength causes permanent plastic deformation of the bolt material. This not only damages the threading but severely compromises the bolt's ability to resist subsequent dynamic and fatigue loading.

SAIVS provides the high-precision torque tools necessary to ensure fastener stress states are accurately controlled within the elastic limit, meeting demanding fatigue design specifications.

II. Operational Efficiency and Asset Protection

Accurate torque ensures that equipment components are assembled precisely according to engineering tolerances. Torque deviation is a leading cause of operational inefficiency and unscheduled downtime:

• Seal Failure: Uneven or insufficient torque on flanges causes unbalanced load distribution on gaskets, leading to leakage.
• Vibration and Noise: Loose connections induce unwanted resonance, accelerating the wear of associated bearings and drive systems.
• Efficiency Loss: Misaligned components due to improper tension increase friction, negatively impacting mechanical efficiency and energy consumption.

By utilizing calibrated tools procured from SAIVS, businesses protect their assets, extend the Mean Time Between Failures (MTBF), and maximize operational continuity.

III. Quality Certification and Regulatory Compliance

Numerous industrial standards (e.g., ISO 9001, AS9100, API specifications) mandate strict control over the Metrological Traceability of critical fastening processes. Failure to provide current, validated calibration records for torque tools can lead to product non-conformance, massive rework, and exposure to significant legal and contractual liabilities. Partnering with SAIVS for scheduled calibration provides official Calibration Certificates compliant with national and international standards, ensuring full regulatory adherence.

Critical Variables Influencing Torque Wrench Metrological Accuracy

Torque wrench accuracy is a dynamic parameter influenced by both internal and external factors that necessitate stringent Metrology Procedures for management.

The Core: Calibration Cycle and Environmental Drift

During a torque wrench’s service life, Creep and Wear of internal springs and mechanical linkages are primary causes of measurement drift. Environmental factors such as temperature and humidity fluctuations can also subtly impact the performance of force sensors or mechanical components.

SAIVS provides expert torque wrench Calibration Services, establishing schedules based on rigorous usage frequency and time periods. This ensures tool accuracy is consistently maintained within the manufacturer’s specified Tolerance Band. We highly recommend a proactive, preventative calibration program to sustain high measurement confidence.

Tool Technology and Operational Range Suitability

The inherent design technology of a torque wrench dictates its accuracy potential:

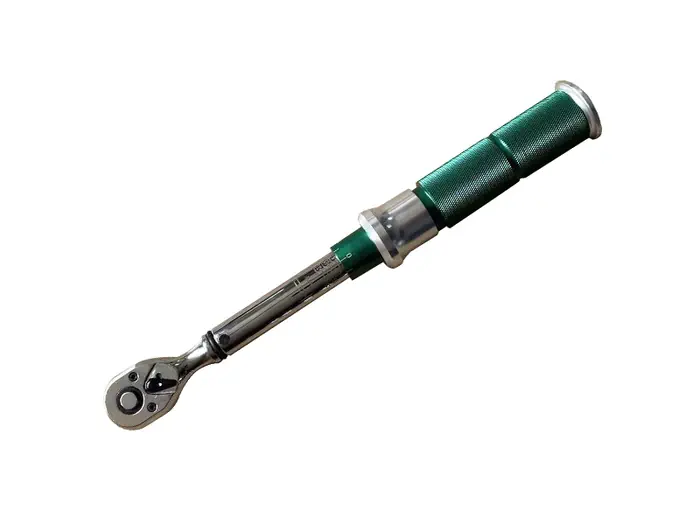

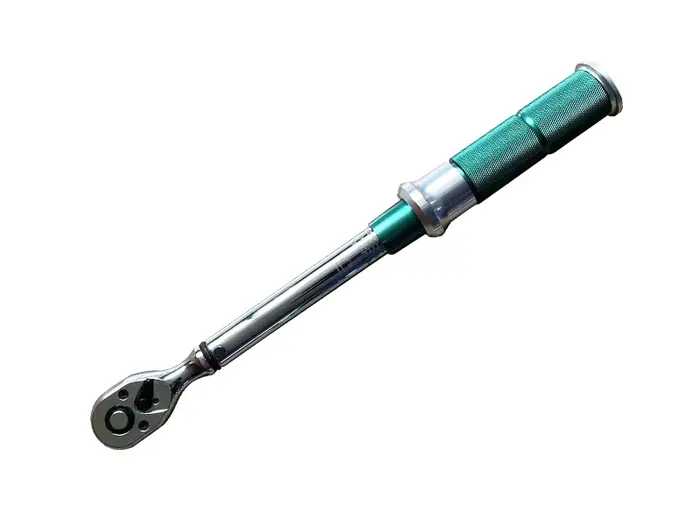

Mechanical (e.g., Click-Type)

These generally offer an accuracy range of $\pm 4\%$ to $\pm 6\%$. The repeatability and stability of the internal release mechanism must be regularly verified.

digital torque wrenches

Digital wrenches supplied by SAIVS often achieve accuracy of $\pm 2\%$ or better, featuring data acquisition and programmable functionality. This makes them the definitive choice for Critical Fastener applications requiring data logging.

Fundamentally, a torque wrench achieves its highest accuracy within the middle 80% of its range. Engineering specifications should guide the selection of a wrench whose target torque falls comfortably within the middle third of its capacity to minimize error contribution.

Operator Technique: The Source of Systematic Error

Even with a perfectly calibrated tool, poor operator technique can introduce significant systematic error. Variables such as Off-Center Loading, inconsistent Angular Velocity during application, or the improper use of extensions, all cause the actual applied torque to deviate from the displayed reading. Mandatory, periodic training based on Standard Operating Procedures (SOPs) is indispensable for maintaining joint integrity consistency.

SAIVS Solutions: Achieving the Highest Standard in Fastening Quality

To ensure high Repeatability and Accuracy in fastening processes, industrial facilities must implement a rigorous management strategy centered on quality tooling and disciplined maintenance, a strategy SAIVS is uniquely positioned to support.

Procuring Optimal SAIVS Torque Tooling

Tooling should never be compromised. Select a wrench rated precisely for the required torque value, environmental conditions, and necessary accuracy class. SAIVS provides a specialized, comprehensive inventory to meet every demanding industrial need:

• Hydraulic Torque Wrenches: Engineered for ultra-high torque and heavy industrial bolting applications.
• Electric Torque Wrenches: Provide precision control and programmable torque curves for quality-sensitive assembly lines.
• Pneumatic and Battery Torque Wrenches: Offer a balance of power, efficiency, and portability for field service requirements.

We encourage you to consult with the SAIVS technical advisory team to specify the ideal, high-precision tool for your exact engineering requirements.

Establishing a Preventive Calibration Partnership with SAIVS

Treat torque tool calibration as a critical quality gate within your manufacturing or maintenance process. By establishing a periodic, traceable calibration contract with SAIVS, you guarantee all critical tools operate within their validity window, and receive formal documentation compliant with International Metrological Standards.

Implementing Rigorous Tool Maintenance and Management

Ensure that all torque wrenches are reset to zero (or their lowest setting) when not in use to relieve spring tension, and are stored in a clean, dry, and shock-protected environment. Any wrench exhibiting signs of mechanical damage must be immediately withdrawn from service and sent to SAIVS for inspection and recertification to prevent inherent measurement errors.

The accuracy of your torque wrench is an irreplaceable assurance mechanism in your industrial quality control process. Partner with SAIVS today for industry-leading torque tooling and unparalleled calibration services to secure the integrity of your most critical bolted assemblies.

Visit the SAIVS website or contact our sales team to explore our full range of hydraulic, pneumatic, electric, and battery torque wrenches, and schedule your professional tool calibration service.
